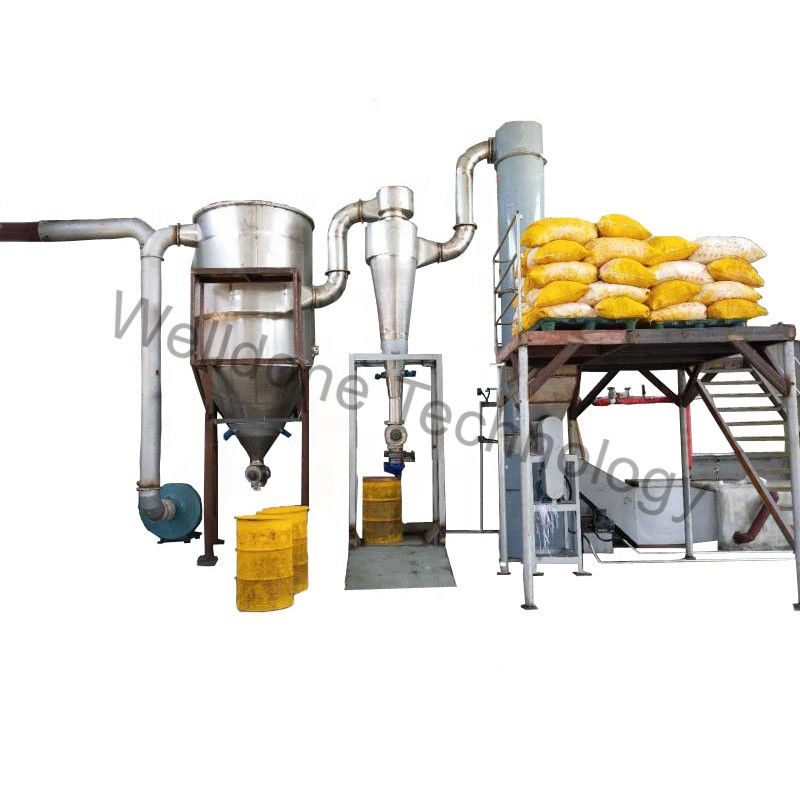

Environmental Friendly High Efficient flash Drying Equipments



Introduction of Environmental Friendly High Efficient Flash Drying Equipments

This is a new kind of drying equipment used for drying the materials, such as paste state, cake state, thixotropy, thermal senstive powder and particles. Our factory is equipped with the testing sample machine, which can be used for carrying out the drying tests of various feeds for our users and for to provide the parameters to select the applicable machine.

Features of Environmental Friendly High Efficient Flash Drying Equipments

  This machine combines the whirl technology with the fluidity. ejection and smashing step technologies.

  The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that " a small       equipment can perform the large production.

  The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency is high.

  The materiral stay time is very short. The quality of the final products is very good, The machine can be used for drying the heat sensitive     materials.

  For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental pollution.

Principle of Environmental Friendly High Efficient Flash Drying Equipments

The hot air enters into the bottom of the dryer in tangent direction.Under the driving of the stirrer,a powerful rotating wind area is formed.The paste state materials enter into the dryer through the screw charger.Under the powerful function effect of stirring at high-speed roation,the materials are distributed under the function of strike,friction and shearing force.The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried.The dried materials after the de-watering will go up with the hot-air flow.The grading rings will stop and keep the big particles.Small particles will be sidcharged out of the dryer from the ring center and will be collected in the cyclone and dust collector. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom.











Technical Parameters of Environmental Friendly High Efficient Flash Drying Equipments

After Sell Service

Service before sell:
----Provide relative technical data for help equipment selection
----Running pilot test
----Offering advice for equipment selection, material analysis
----Provide flow chart, basic drawing
----Provide technical design
Service in sell:
----Provide factory layout according to contract
----Manufacturing ordered equipment according to the related standard
---- A presentation report of manufacturing situation will be offered every 15days
---- Tracking and supervising in whole manufacturing and transporting period according to the contract requirement
---- Photo of wooden case will be offered, wooden case with standard shipping marks.
---- Photo of freight loading will be offered.
---- A record of detailed delivery list will be offered
---- A record of detailed freight loading list will be offered
---- All of wooden case will be marked serial number, all of attachments will be marked serial number, convenient for client's clearing
Service after sell:
----Send service engineer for help instruct installation.
----Send service engineer for running test at site and training the operator
----Help client for maintenance and repair
----Provide one year spare part
----Quality warranty for two years after sell
